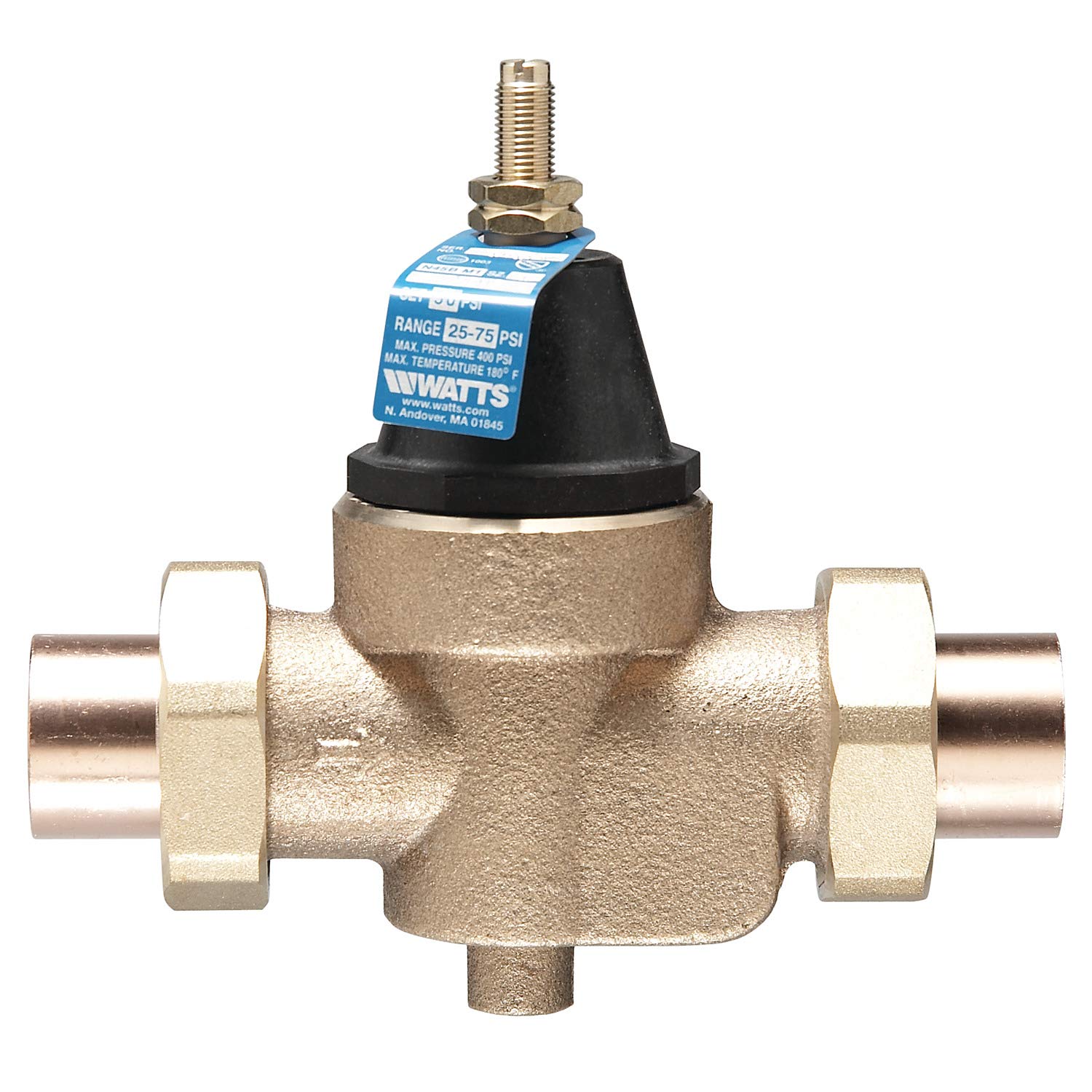

3/4 Inch Lead Free Water Pressure Reducing Valve K5623
3/4 Inch Lead Free Water Pressure Reducing Valve K5623
Reduces incoming water pressure to protect plumbing systems and reduce water consumption in commercial industrial and residential applications
Suitable for up to 400 psi (27.6 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa)
Features a lead-free brass body; double union solder inlet and outlet connection; integral stainless-steel strainer (removeable for cleaning); thermoplastic seat module; bypass feature that controls thermal expansion pressure; and a sealed spring cage for waterworks pit installations
Offers easy installation, easy handling and in-line serviceability
The standard bypass feature permits the flow of water back through the valve into the main when pressures, due to thermal expansion on the outlet side of the valve, exceed the pressure in the main supply
This 3/4 inch water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead free brass body construction, double union solder inlet and outlet connection, stainless steel integral strainer, thermoplastic seat module, thermal expansion bypass and a sealed spring cage for waterworks pit installations. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 400 psi (27.6 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
| Watts ?�� LF25AUB Series, Lead Free, 3/4' Sweat by 3/4' FIP | Watts 3/4 LFN45BM1, Lead Free, NPT threaded union inlet x NPT female outlet | Watts 3�� LFN223M1-B, Lead Free, NPT threaded female inlet x NPT female outlet | Watts 2�� LFU5B-Z3, Lead Free, NPT threaded female inlet x NPT female outlet | |
|---|---|---|---|---|
| Max PSI | 300 | 400 | 300 | 300 |
| Adjustable Temp Range | 25-75 PSI | 25-75 PSI | 25-75 PSI | 25-75 PSI |
| Max Working Temperature | 160 | 180 | 160 | 160 |
| Outlet Connection Type | Female Threaded | Female Threaded | Female Threaded | Female Threaded |
| Inlet Connection Type | Sweat | Female Threaded | Female Threaded | Female Threaded |
| Lead Free |
